SITE PLAN
AXONOMETRIC DRAWING

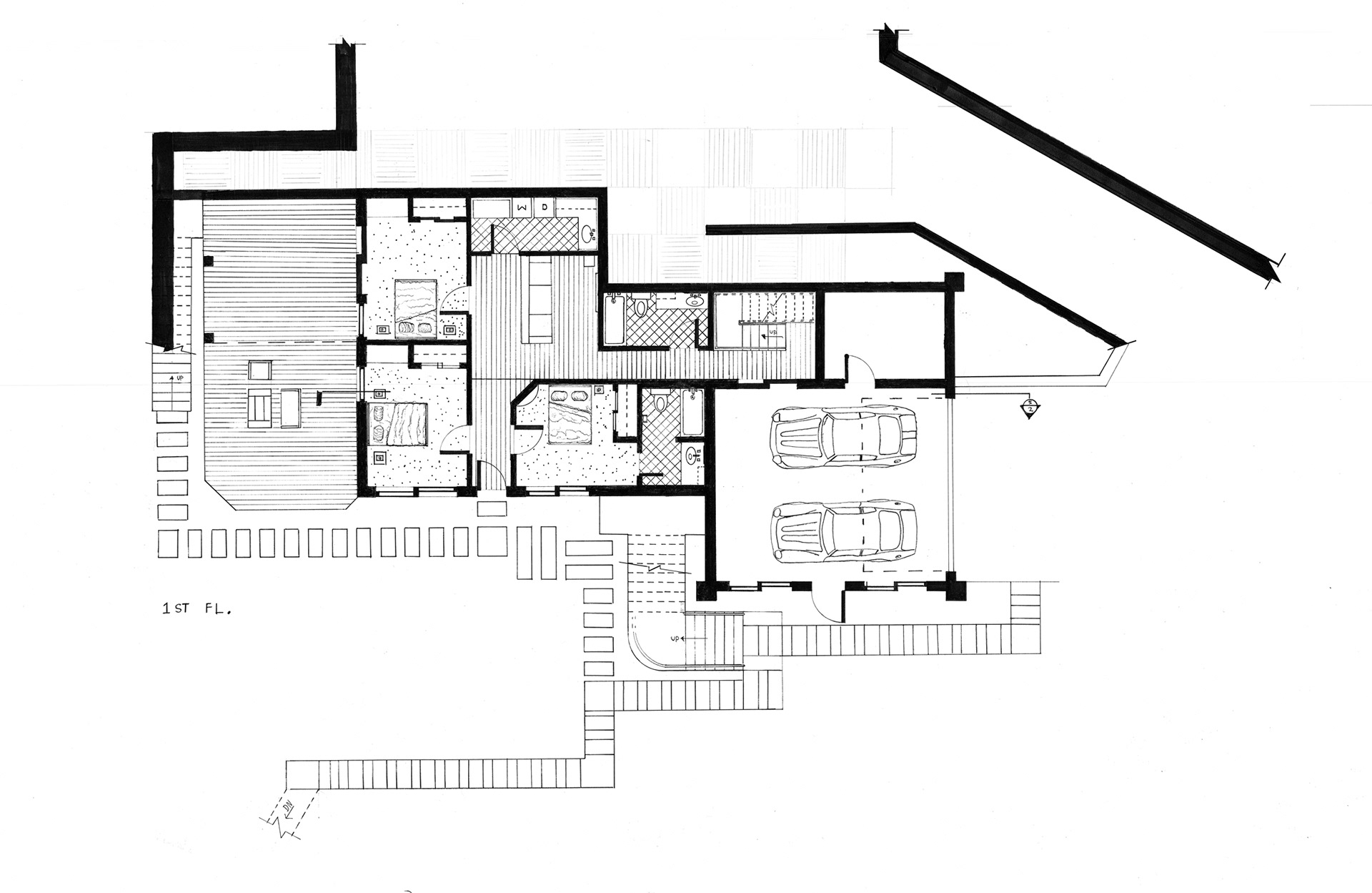

(LEFT TO RIGHT) GROUND PATIO, TWO KIDS ROOM, LIVINGROOM W/LAUNDRY, GUEST ROOM W/TOILET, STAIRCASE TO TOP FLOOR 2&3.
(LEFT TO RIGHT) EXTERIOR PATIO, LIVINGROOM W/BAR, REAR AND FRONT ENTRANCE, DINING WITH KITCHEN
(LEFT TO RIGHT) PATIO TO OFFICE SPACE, HALLWAY TO MASTERBEDROOM TO VERANDA, WALK-IN CLOSET & TOILET.
EAST ELEV: FRONT FACADE WEST ELEV: REAR FACADE
Architectural Design II
Spring, 2019
